AECOSILENT UNDER

AECOSILENT UNDER

AECOSILENT UNDER is used as decupling elastic-resilient mat for the creation of floating floors to reduce the impact sound noises in buildings with any intended purpose, so to comply with the law requirements.

Description

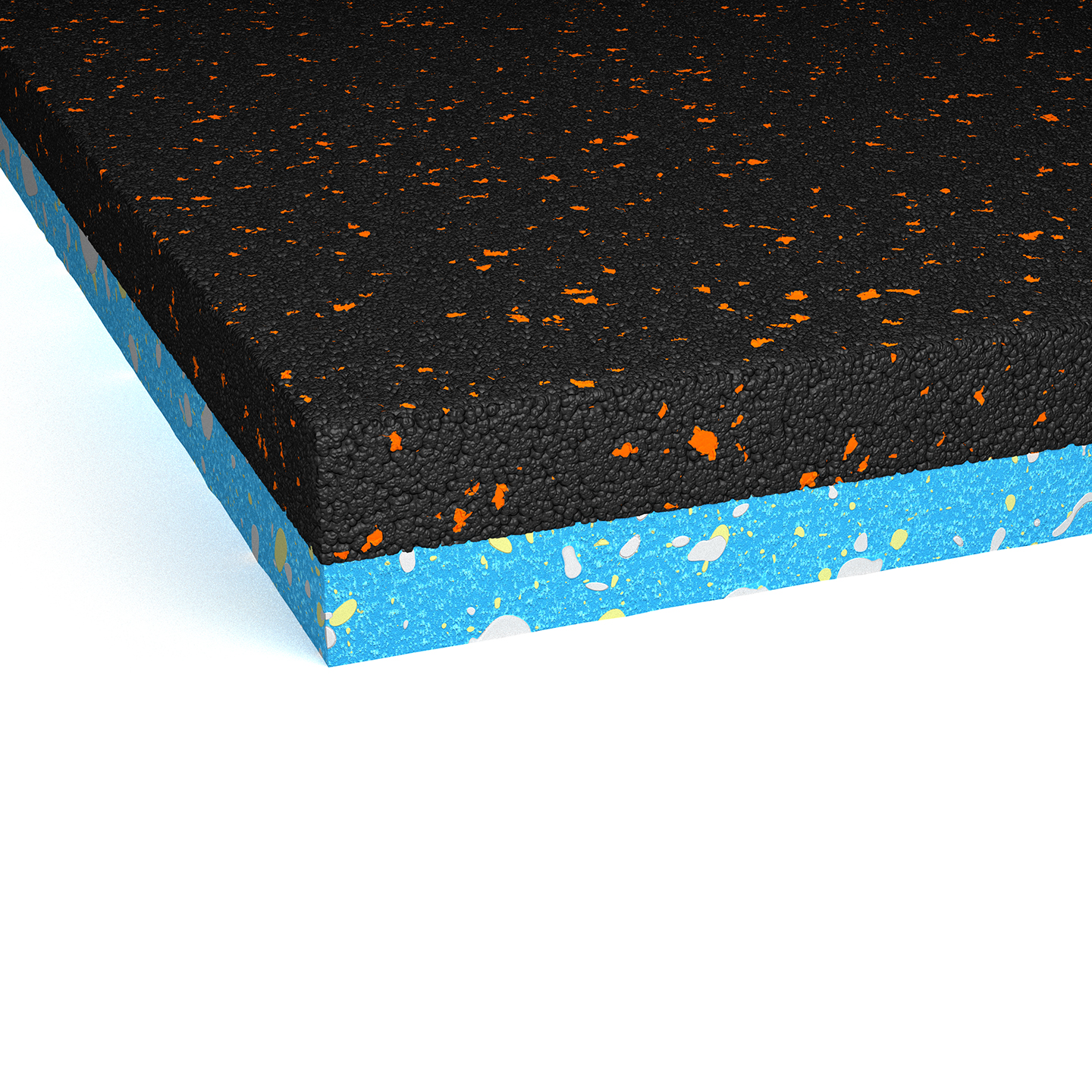

AECOSILENT UNDER is proposed in the market as an example of accomplished synthesis between environment, technology and innovation. The creation of a product with high performances through the use of recycled materials is a challenging project implemented through new technologies. AECOSILENT UNDER is designed as floor product made up of a ELT rubber mat (750 Kg/m³ density, 6 mm thickness) coupled with a polyurethane agglomerate layer (90 Kg/m³ density, 5 mm thickness). The characteristics of hardness, treading, resistance to compression and abrasion, crushproof over time and the elastic module typical of the upper layer (ISOLNOISE AE) are such to protect either the material of the lower layer than to guarantee the high soundproofing capacity. Easy to use, AECOSILENT UNDER is equipped with side overlapping selvage so to avoid that imperfections during laying could compromise even only slightly the final result. AECOSILENT UNDER, provides results in line with the promised performances.

USE

AECOSILENT UNDER is used as decupling elastic-resilient mat for the creation of floating floors to reduce the impact sound noises in buildings with any intended purpose, so to comply with the law requirements.

APPLICATION

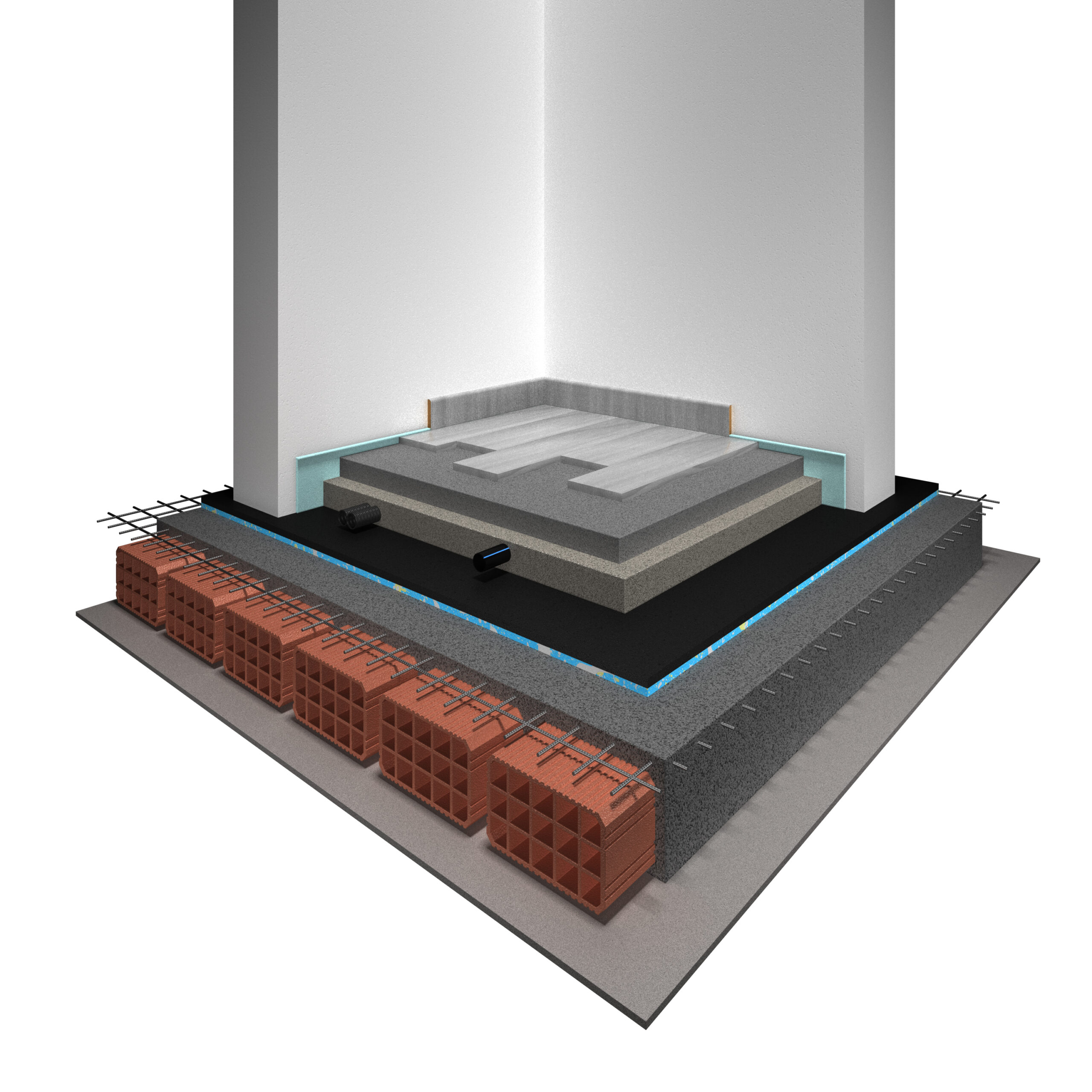

It is efficiently used in any kind of floors, even on wooden floors, underneath the fixtures and over the floor screed.

Additional information

rigidità dinamica assoluta

MN/m³: 10

UNI EN 29052-1 Cert. n°AE-086004-MG-B-2010

Resonance frequency f0

Hz: 35

UNI EN 29052-1 Cert. n°AE-086004-MG-B-2010

∆Lw

dB: 34

UNI EN 12354-2 peso massetto soprastante 115 kg/m²

conduttività termica λ

W/mK: 0.0527

UNI EN ISO 12667 Cert. n°006-10-the TR

Deformazione Comp.(dB)

mm: 1.1

UNI EN 12431 Cert. n°440.11UN0050/11
