AESSE 2200

AESSE 2200

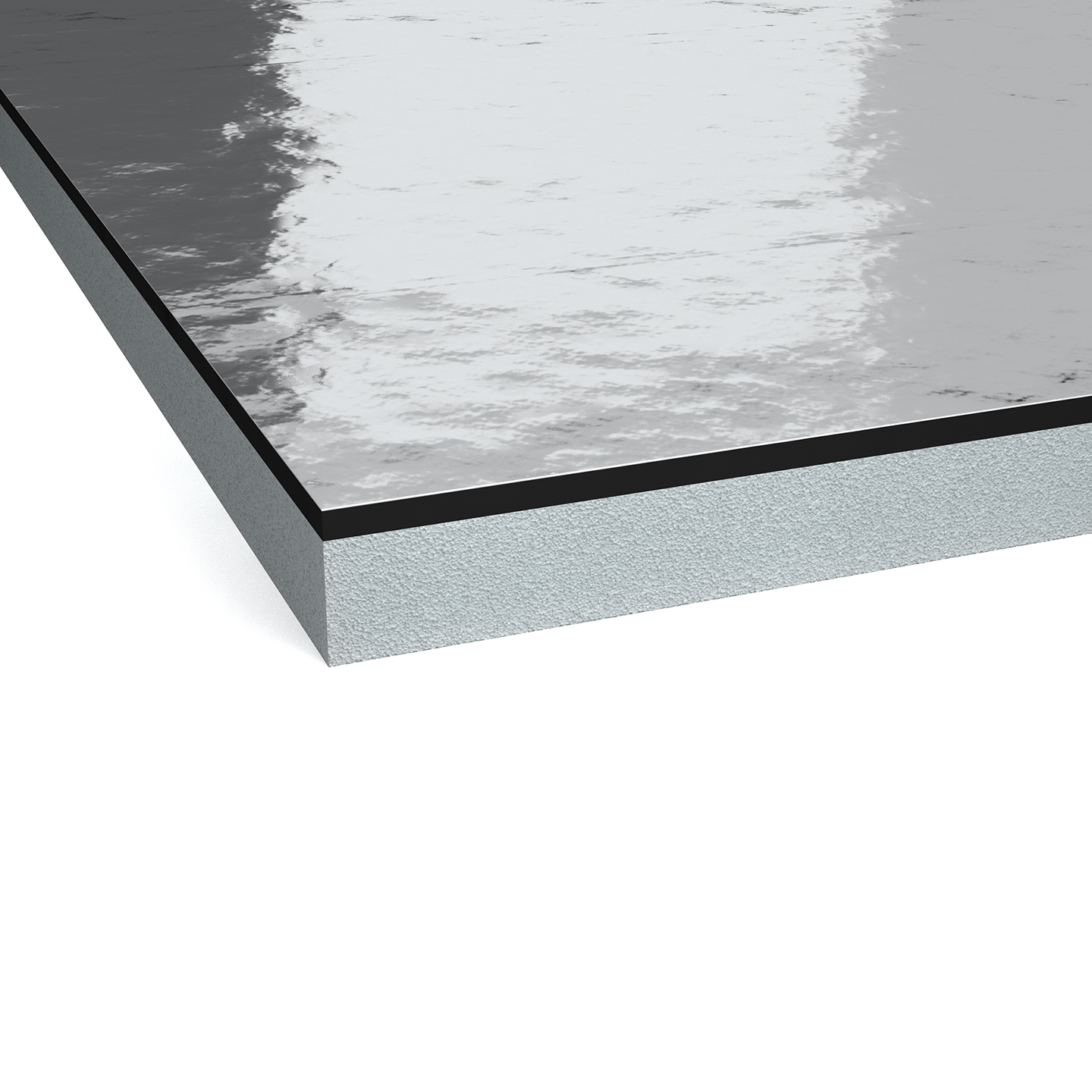

AESSE 2200 is a soundproofing mat made up of a very flexible bituminous membrane (1,1 mm thickness) coupled with a bonded polyester fibre layer (30/50 kg/ m3 density, 5 mm thickness). The production technique during the coupling phase gives to AESSE 2200 excellent characteristics of mechanical resistance, it is walkable, waterproof and has good absorption capacity to impacts. AESSE 2200 is used as an impact sound noise separating product between the screed and the lightweight screed for fixtures levelling. Easy to use, AESSE 2200 has an adhesive overlapping lateral selvedge so to avoid that during laying the imperfections can compromise, even slightly, the final result. The bituminous membrane allows the application whenever the use of self-levelling screeds is planned.

Product variants

Namerig. dinamica apparente st s’tResonance frequency f0Impact sound noise attenuation level ∆LwSpessore totaledef. alla compressione (dL-dB)Technical Sheet Data

MN/m3: •10¶ ¬ UNI EN 29052-1 ¬ Cert. n° 095-09-acu DS

Hz: •36¶ ¬ UNI EN 29052-1 ¬ Cert. n° 095-09-acu DS

dB: •34¶ ¬ UNI EN 12354-2 ¬ Peso massetto soprastante 115 Kg/m2

mm: •7,5¶ ¬ Tolleranza ± 10 % ¬

mm: •3,3¶ ¬ UNI EN 12431 ¬ Cert.n° 1190.11UN0050/12

MN/m3: •10¶ ¬ UNI EN 29052-1 ¬ Cert. n° 095-09-acu DS

Hz: •36¶ ¬ UNI EN 29052-1 ¬ Cert. n° 095-09-acu DS

dB: •34¶ ¬ UNI EN 12354-2 ¬ Peso massetto soprastante 115 Kg/m2

mm: •7,5¶ ¬ Tolleranza ± 10 % ¬

mm: •3,3¶ ¬ UNI EN 12431 ¬ Cert.n° 1190.11UN0050/12

Description

UTILIZZO

AESSE 2200 is used as decupling elastic-resilient mat for the creation of floating floors to reduce the impact sound noises in buildings with any intended purpose, so to comply with the law requirements.

APPLICAZIONE

Absolute dynamic rigidity s’

NOTE

rigidità dinamica assoluta s’

Additional information

rig. dinamica apparente st s’t
Resonance frequency f0
Impact sound noise attenuation level ∆Lw
Spessore totale
def. alla compressione (dL-dB)

Downloads

Certificato
