AESTARK PLUS

AESTARK PLUS

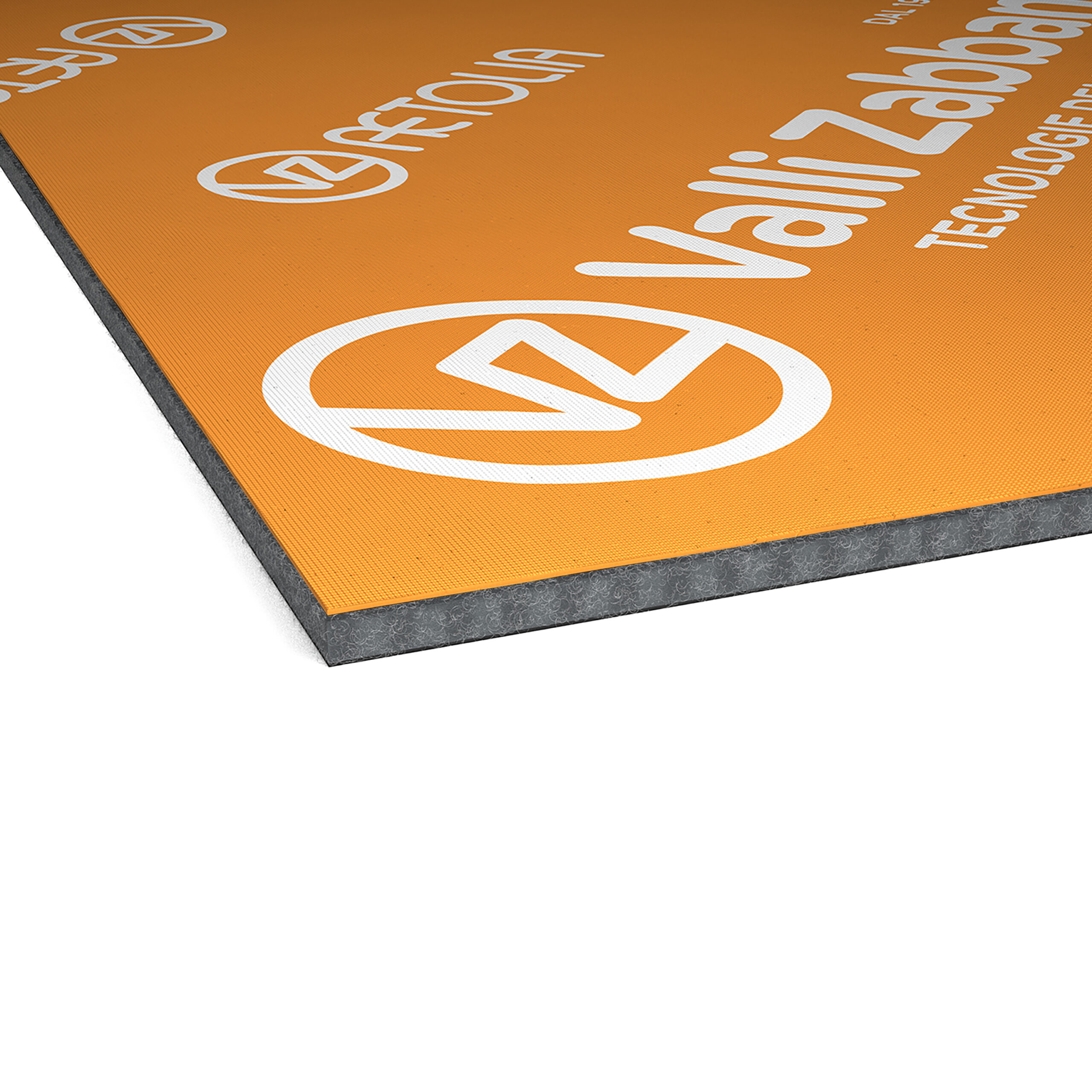

Any structural element is important when we talk about acoustic and Aetolia VZ cannot ignore the attention to those details. Experience and research have created AESTARK PLUS. Of extreme utility and flexibility, this product has been conceived to increase the airborne acoustic insulation in very contained thicknesses, 2,4 mm or 4,8 mm only. Due to its mass (specific weight 1500 Kg/m3) AESTARK PLUS has also an attenuating behaviour in relation to vibrations transmission and can be used to increase the pipes insulation of rubber fixtures, plasterboards panels and any other structural element where, with very low thickness, a very high acoustic performance is requested. If we also think about the workability during application, AESTARK PLUS moreover to be malleable can be made adhesive on one side to be easily used in all situations. AESTARK PLUS is one of the few acoustic soundimpeding membranes to guarantee the result with a certificate attesting its performances with an Rw from 22 dB to 28 dB for the panel only.

Product variants

NameRw pannello da 2,4 mmRw pannello da 4,8 mmTechnical Sheet Data
AESTARK PLUS 3.6 kg

dB: •22∆ ¬ UNI EN ISO 10140-2 - UNI EN ISO 717-1 ¬ Cert. n° 014-13 IAP

dB: •28∆ ¬ - ¬ Valore di calcolo

AESTARK PLUS 5 kg

dB: •22∆ ¬ UNI EN ISO 10140-2 - UNI EN ISO 717-1 ¬ Cert. n° 014-13 IAP

dB: •28∆ ¬ - ¬ Valore di calcolo

AESTARK PLUS 7,2 kg

dB: •22∆ ¬ UNI EN ISO 10140-2 - UNI EN ISO 717-1 ¬ Cert. n° 014-13 IAP

dB: •28∆ ¬ - ¬ Valore di calcolo

AESTARK PLUS 8 kg

dB: •22∆ ¬ UNI EN ISO 10140-2 - UNI EN ISO 717-1 ¬ Cert. n° 014-13 IAP

dB: •28∆ ¬ - ¬ Valore di calcolo

Description

USE

AESTARK PLUS is used as additional sound-impeding attenuating layer to increase acoustic insulation.

APPLICATION

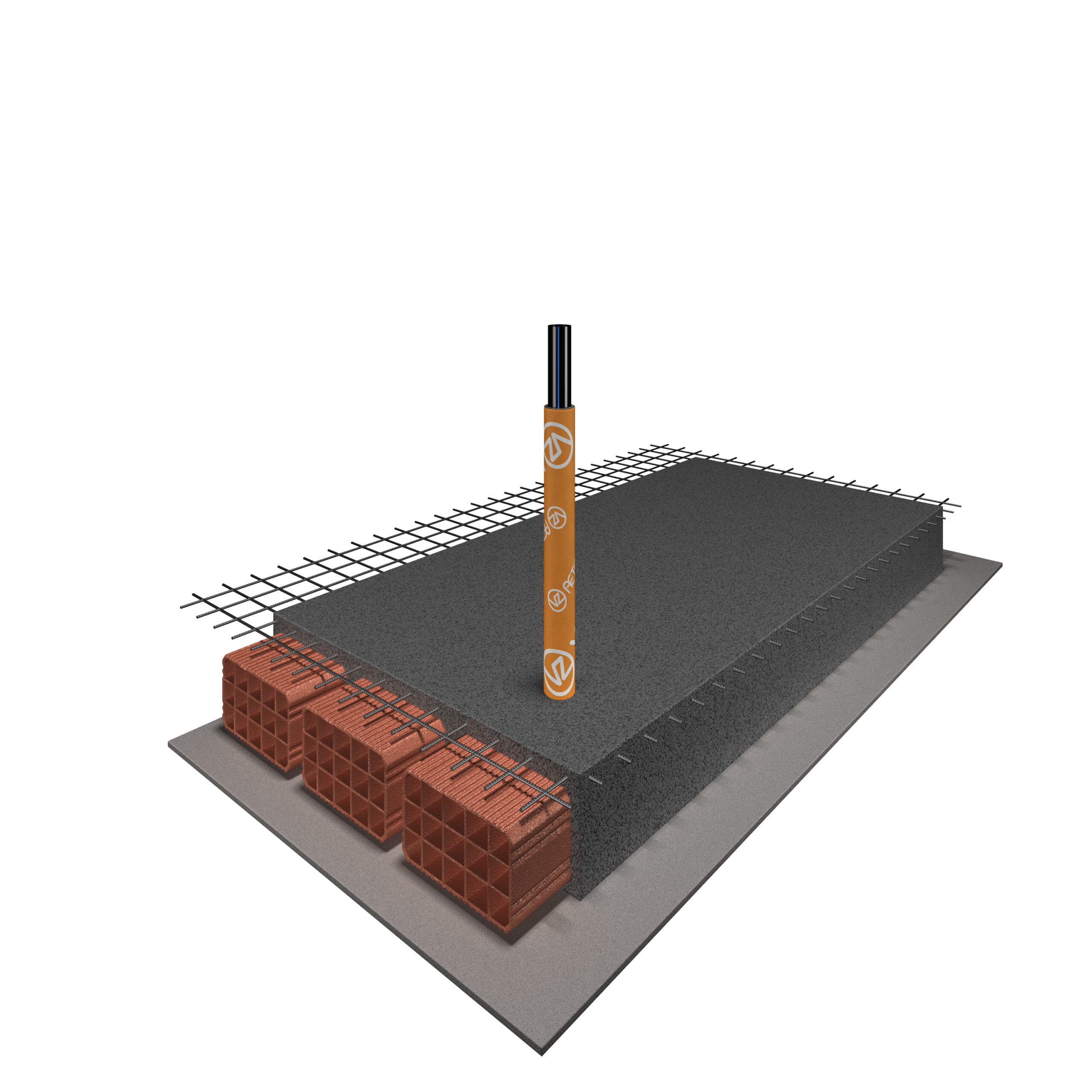

All applications are simplified thanks to the adhesive side. Application for technical fixtures with particular reference to the exhaust ones Application on plasterboard panels to increase the mass addition Application on iron structures to lower vibrations Generic application whereas the increase of acoustic insulation is needed

NOTE

Rw panel only 2,4 mm

Additional information

Rw pannello da 2,4 mm
Rw pannello da 4,8 mm

Downloads

Technical sheet

Certificato
